CLEAR VIEW SCREEN | Marine Window,Marine Rotating Window,Ship window,yacht window,boat window
layer popup view
full image CLEAR VIEW SCREEN detail image1 CLEAR VIEW SCREEN detail image2 CLEAR VIEW SCREEN
KW

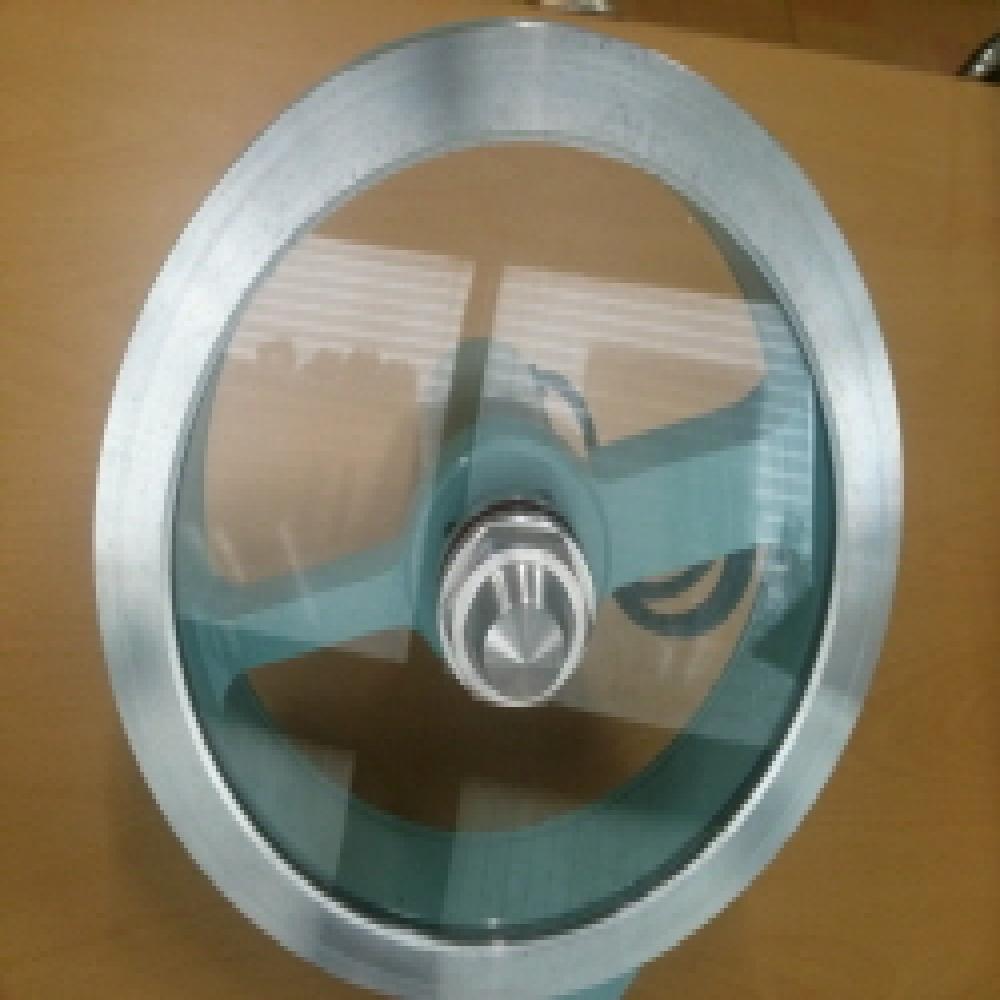

CLEAR VIEW SCREEN

  • Payment
    T/T
  • MOQ
    1 Set
  • Supply Ability
    20 Set per One-Time
  • Supply Details
    Customization
  • Country of sale
    Asia, Americas, Europe, Africa, World Wide
  • Catalogue
  • PRICE

    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    KW
    Model SLR35024
  • origin
    Republic of Korea
  • Size(Capacity)
    Dia.250mm, Dia.300mm, Dia.350mm


PRODUCT DESCRIPTION

  # CLEAR VIEW SCREEN

1. Weather-Proof Type  <<<




DIMENSION TABLE (unit : mm)
Nominal Size - D Glass Cutting Size - D1
250 276
300 326
350 382

Frame Material : Al-alloy                Power   :   AC 110,220V / DC 12,24V
Motor Output    : 60W, 80W           R.P.M    :   1900 ± 200
* Application : Fixed windows in front of a wheel house
* Particularity : Secure field of vision in case of rain and snow

2. Heater Type  <<<



DIMENSION TABLE (unit : mm)
Nominal Size - D Glass Cutting Size - D1
250 276
300 326
350 382

Frame Material : Al-alloy                Power   :   AC 110,220V / DC 12,24V
Motor Output    : 60W, 80W           R.P.M    :   1900 ± 200
* Ventilation : Not allowed.
* Uses : LNG, OIL, CHEMICAL VESSEL

3. GAS- Tight Type  <<<



DIMENSION TABLE (unit : mm)
Nominal Size - D Glass Cutting Size - D1
250 276
300 326
350 382
Frame Material : Al-alloy                Power   :   AC 110,220V / DC 12,24V
Motor Output    : 60W, 80W           R.P.M    :   1900 ± 200
* Application : Fixed windows in front of a wheel house
* Particularity : Prevent the formation of dew, frost or fog and an inflow of gas
                         because it is consist of a fixed glass with heater and a rotation glass.



  # PACKING DETAILS

Type Dia. Weight  Carton Box Size Remark
Weather Proof Type 250mm 7.2kg 370*370*250(mm) SRL30024/WPT25024
300mm 8.2kg 370*370*250(mm) SRL35024/WPT30024
350mm 13.2kg 450*450*300(mm)
Heater Type 250mm 7.7kg 370*370*250(mm)
300mm 8.7kg 370*370*250(mm) SLR35024 with Heater
350mm 13.7kg 450*450*300(mm) SRL35012 with Heater
Gas-Tight Type 300mm 9.8kg 370*370*250(mm)
350mm 14.3kg 450*450*300(mm)
Motor 250/300mm 2kg 200*100*100(mm)
350mm 3kg 200*100*100(mm)

1. Picture by Air-Freight  <<<



2. Picture by Sea-Freight  <<<





 # THE COUNTRY OF EXPORTING  SINCE 2004

1. CANADA
2. U.S.A
3. SOUTH AMERICA ( ARGENTINA )
4. EAST ASIA ( SINGAPORE )
5. EUROPE ( NETHERLAND )
