Injection Pump

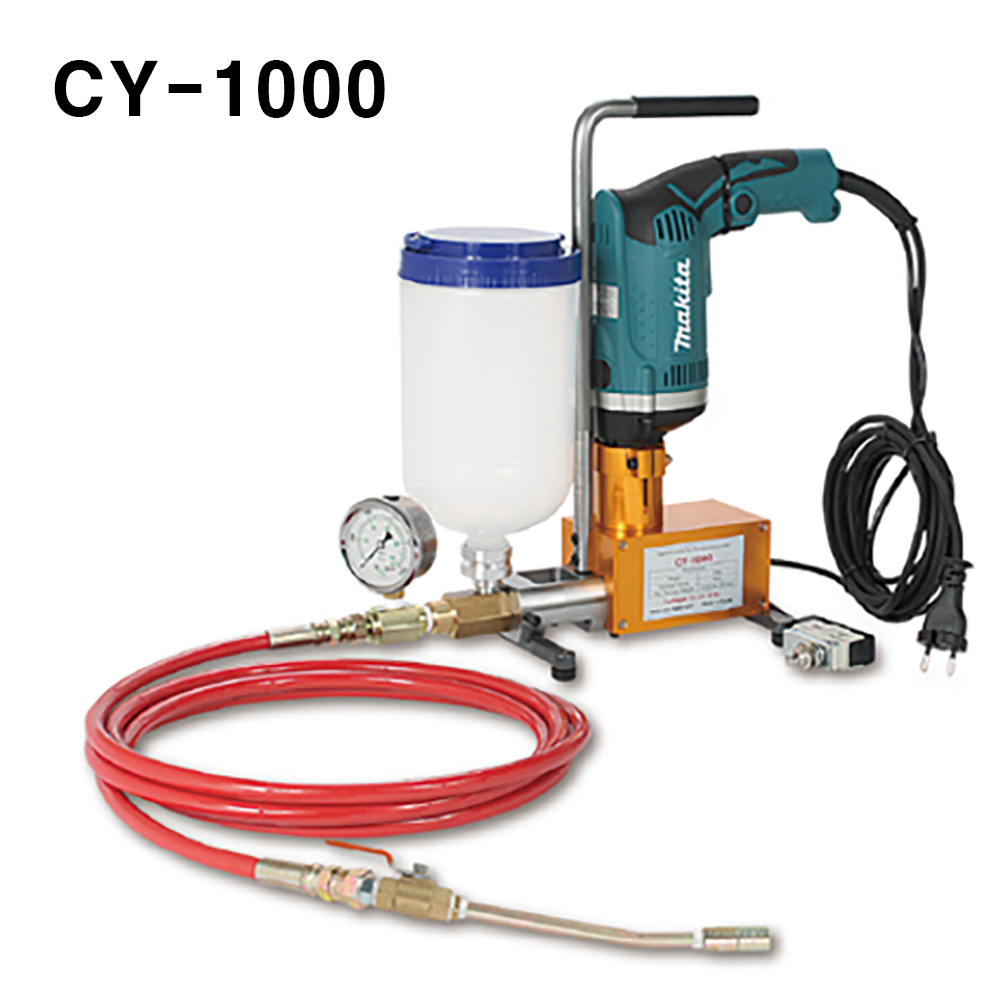

CY-1000
High pressure Grouting Injection pump for Epoxy resin and Polyurethane foam Electric Drill operated (Makita drill Model HP1630k & HP2070F)
High pressure 610-1,000 kgf/cm² grouting injection pump
◎ Features
- Very simple to operate
- Easy to carry in narrow and small space because its light weight & compact design
- Easy to exchange piston
- Low maintenance cost and Easy to clean after use
◎ Specifications
| Transmission Function |
1-Speed |
| Power Comsumption |
AC220V. 710W |
| Maximum Pressure |
610Kgf/cm2 |
| Recommended Pressure |
300-500 |
| Max. Flow Rate |
400cc/min |
| Weight |
6kg |
| Unit Composition |
Same as pictures |

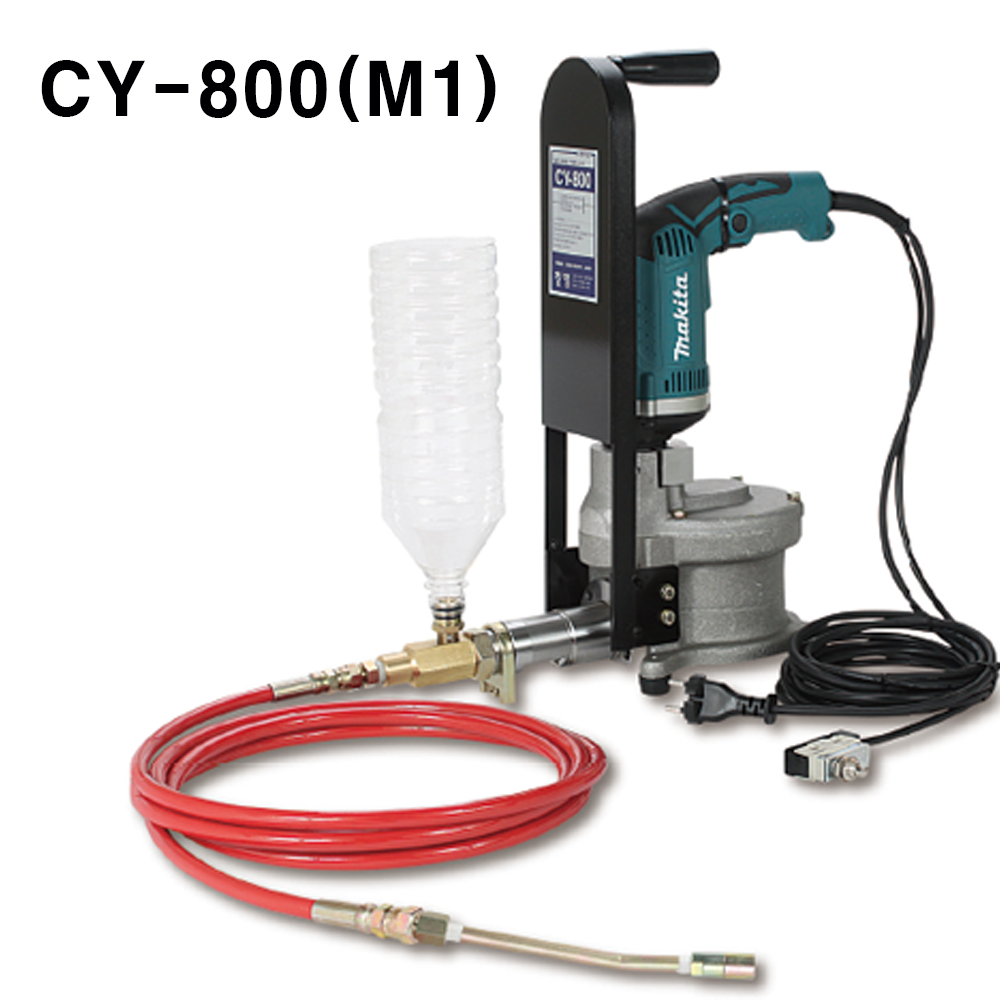

CY-800M1
High pressure Grouting Injection pump for Epoxy resin and Polyurethane foam Electric Drill operated (Makita drill Model HP1630k & HP2070F)
High pressure 610-1,000 kgf/cm² grouting injection pump
◎ Features
- Very simple to operate
- Easy to carry in narrow and small space because its light weight & compact design
- Easy to exchange piston
- Low maintenance cost and Easy to clean after use
◎ Specifications
| Transmission Function |
1-Speed |
| Power Comsumption |
AC220V. 710W |
| Maximum Pressure |
700Kgf/cm2 |
| Recommended Pressure |
300-500 |
| Max. Flow Rate |
400cc/min |
| Weight |
12kg |
| Unit Composition |
Same as pictures |

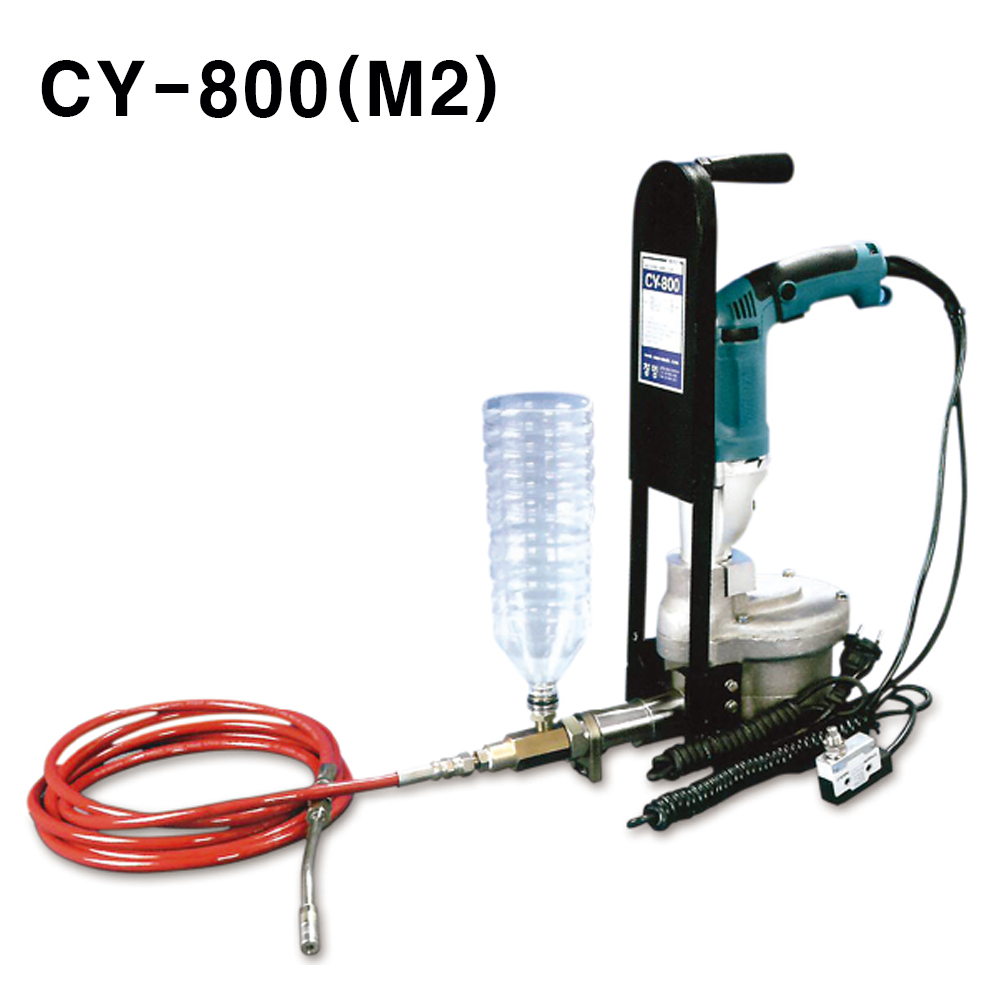

CY-800M2
High pressure Grouting Injection pump for Epoxy resin and Polyurethane foam Electric Drill operated (Makita drill Model HP1630k & HP2070F)
High pressure 610-1,000 kgf/cm² grouting injection pump
◎ Features
- Very simple to operate
- Easy to carry in narrow and small space because its light weight & compact design
- Easy to exchange piston
- Low maintenance cost and Easy to clean after use
◎ Specifications
| Transmission Function |
2-Speed |
| Power Comsumption |
AC220V. 1010W |
| Maximum Pressure |
1,000Kgf/cm2 |
| Recommended Pressure |
300-500 |
| Max. Flow Rate |
700cc/min |
| Weight |
14kg |
| Unit Composition |
Same as pictures |
