Introduction

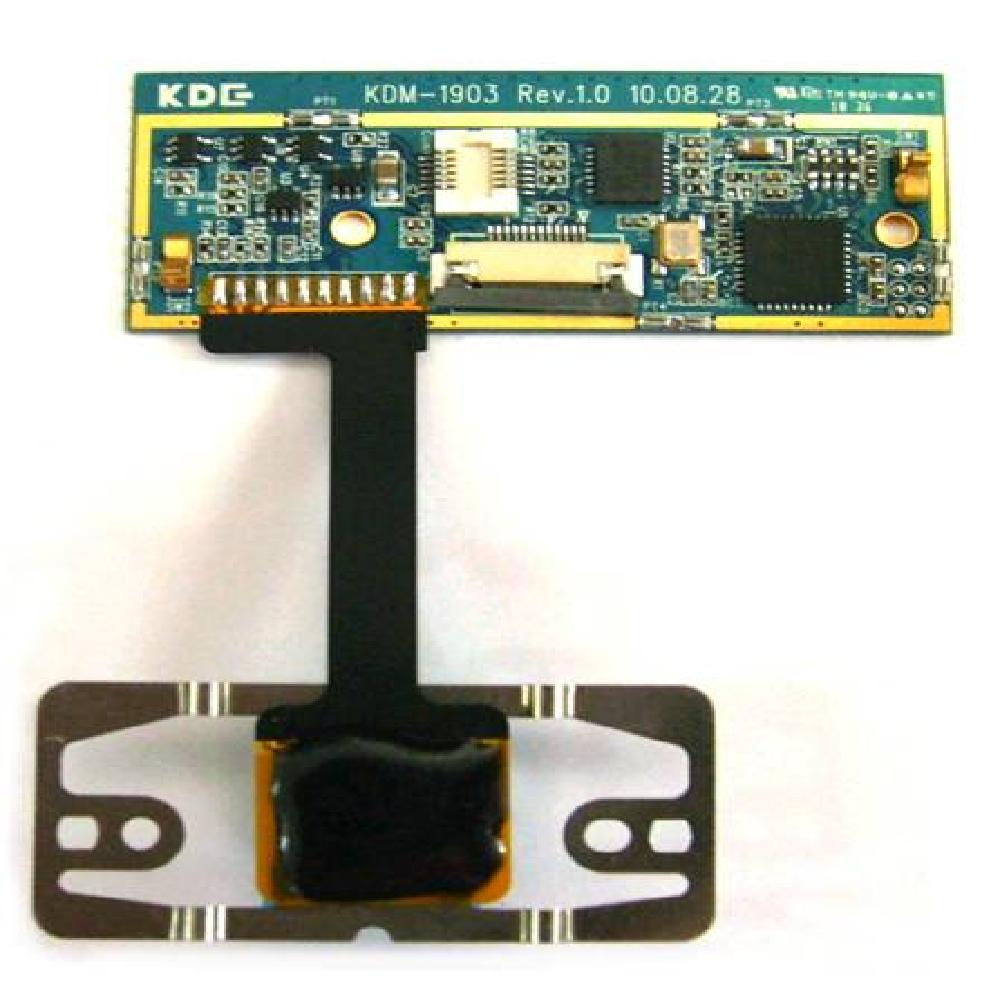

The magnetic stripe card reader module, KDM-1903 reads up to three tracks (LoCo / HiCo) of information with a single swipe. Magnetic stripe data is output to UART TTL.

Features

■ Card Standard : ISO-7810, 7811
■ ISO-1,2,3 Full Track Read (LoCo / HiCo)
■ UART TTL Level Serial Interface
■ Operation Voltage : DC 3.3V ± 5%
■ Ripple : Less then 50 mVp-p
■ Current : Less then 5.0 mA
■ Feeding Speed : 15~95 cm/sec
■ Compliance with PCI
■ PCB/F-PCB mesh type
